SKF Enlight Collect Manager

The SKF Enlight Collect Manager application is used in conjunction with SKF @ptitude Observer software and provides two functions: 1. A dashboard function providing overview and insight into your machine health via the Phoenix webservice.

2. Commissioning of IMx-1 sensors and gateways in an SKF Enlight Collect IMx-1 System.

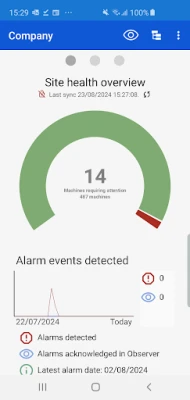

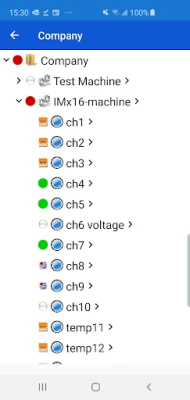

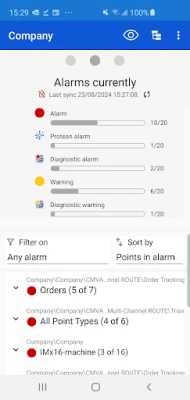

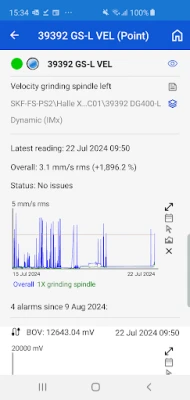

The dashboard function allows users to view the overall status of their @ptitude Observer hierarchy, including presentation of status overview, detailed view of alarm conditions, detailed viewing of machine and point measurements, including plotting trends, spectra and time waveforms, along with alarm conditions, notes and event cases. System alarms may be viewed (depending on Observer version) and, if permissions allow it, acknowledged. Data alarms may also be acknowledged, also depending on user permissions. Finally, there is a full hierarchy browser and a function for "following" any object from the database, where they can be presented in an observer view.

Users of Observer version 13.6 will also be able to add, edit or delete notes, add notes replies and upload images, depending on permissions.

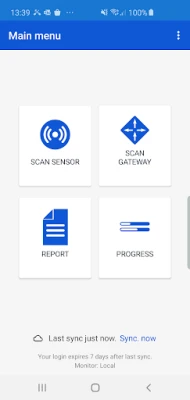

The IMx-1 System provides low cost condition monitoring of machinery via battery powered wireless sensors and an externally powered gateway that controls the sensors and passes their measurement data to the back end for reporting and analysis. Enlight Collect Manager connects to the sensors and gateways using NFC and Bluetooth Low Energy in order to commission them or report their status and a commissioning report in PDF format may be generated and shared.

A phone running Android 9.0 or later is required and must include NFC and Bluetooth Low Energy 4.2 or later.
